Better than new

Our Kysor-style seal & lining kits include the highest quality friction material available, along with our new, exclusive Auto Lock seal. The Auto Lock seal prevents on-the-road failures when the friction material reaches the end of its life.

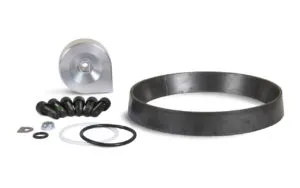

8000SKL
For K-22 Front Air Fan Clutches

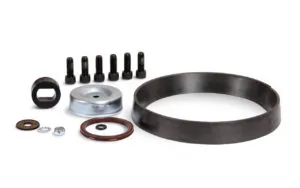

8500SKL
For K-22 Rear Air Fan Clutches



8800SKL
For K-26, K-30, &K-32 Fan Clutches



Not Sure Which Kit to Use?

Answer a few questions about your Kysor-style fan clutch to determine which rebuild kit is appropriate for you.

Determine Your Kit ›

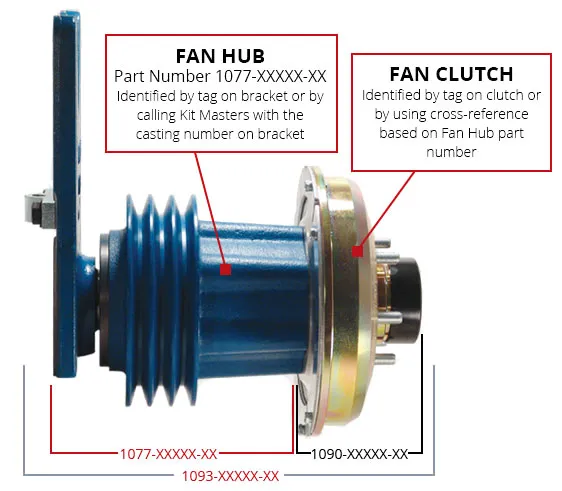

Understanding the Hub/Clutch Relationship

Kysor-style ON/OFF rear air fan clutch assemblies are two-piece systems. The first piece is the Fan Hub, which consists of an assembled pulley and mounting bracket. The second piece is the Fan Clutch, which turns on and off as needed to cool the engine.

Part number 1093-XXXXX-XX refers to an entire BorgWarner-Style fan clutch assembly. It is for reference purposes only and not available for ordering.

Most part numbers start with 1077, 1093 or 1090, but some newer hubs and assemblies start with 0100.

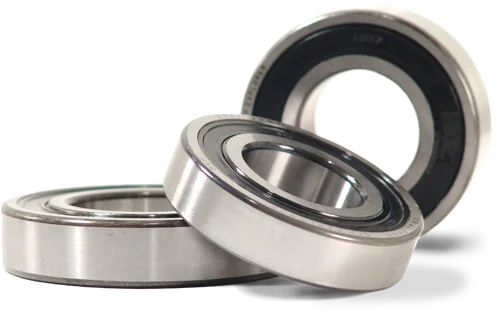

Hub Bearing Kits

When rebuilding or replacing your Kysor-style fan clutch, you should ALWAYS replace the hub bearings. Hub bearing failures quite often lead directly to fan clutch failures. Use the appropriate bearing kit to prevent these failures.

8581-01



8582-01



8582-02



8582-03



8582-04



Lining Kits

8500L
For K22 Front & Rear Air



8800L
For K26, K30 & K32 Front & Rear Air



Seal Kits

8000SK
For K22 Front Air



8500SK
For K22, K26, K30 & K32 RA
